Vlan Interface not working

M Okasha

hello guys

iam testing sophos XG in lab environment using GNS3

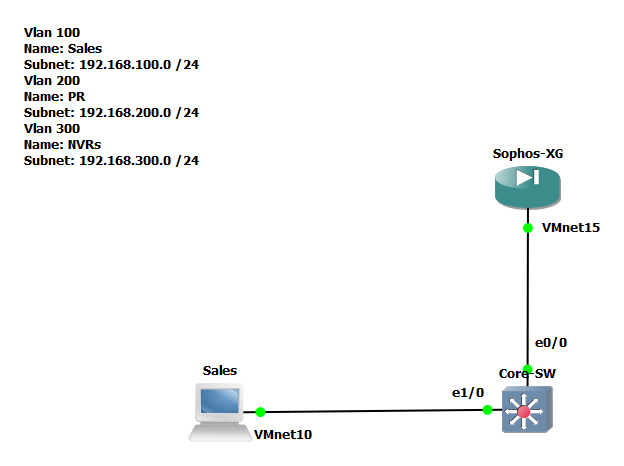

as you can see i have created a simple lab using one core switch

and configured it with 3 vlans : 100, 200, 300

the port e0/0 is configured as dot1q Trunk port

port e1/0 is a member of vlan 100

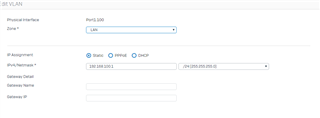

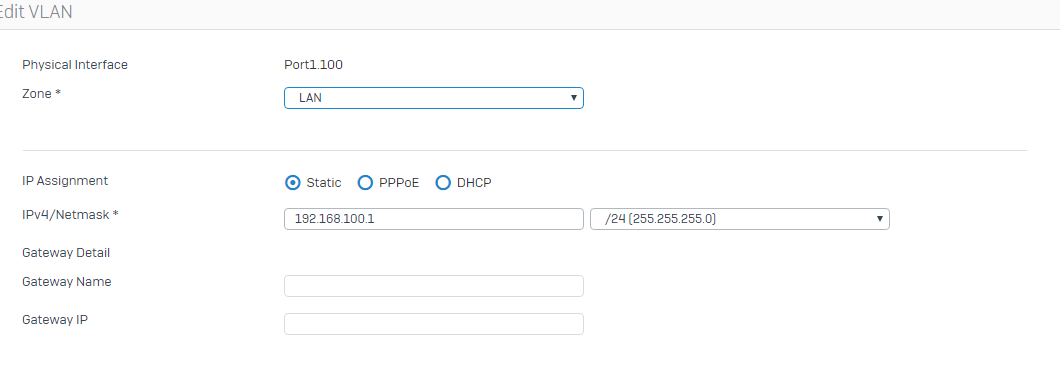

on my xg i have created vlan interface and tagged it with 100 and attached it to my lan port

then created a dhcp server for this vlan

but it seems not working properly

i cant get ip from the DHCP server

even when i set the ip statically i cant ping the vlan interface

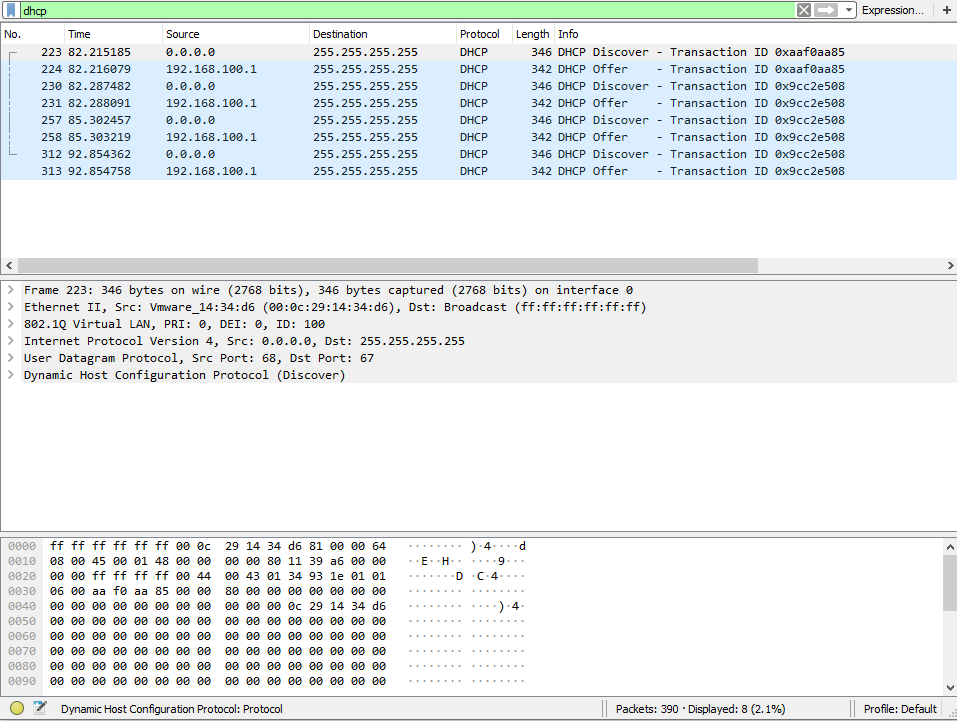

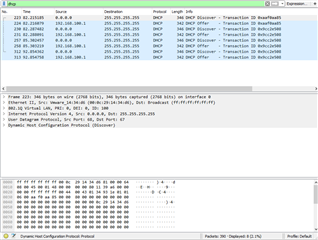

then i captured trunk port packets (E0/0) with wireshark

i found that the dhcp server is offering the correct IP address but the PC doesn't replay with Request

any idea what am i missing here ?

thank you
