Hi colleagues, I need a help in order to answer a question:

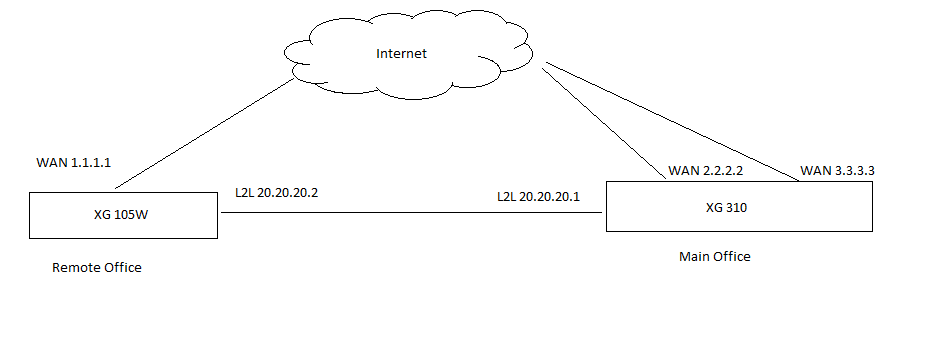

This customer has several Remote Office and a Layer 2 Link (L2L) between each of them and the main office. What we need is the following:
1- Use the L2L as a failover for Internet in the RO.
2- Send all corporate traffic through the L2L
3- Have a VPN as Failover for the L2L using at least 1 WAN from each firewall.
4- Main issue is STAS traffic cant go thought the L2L link if its configured as WAN for Internet Failover.
We thought it may be possible is to establish SSL VPN Site to site connections configuring each XG105 as the server, listening in the L2L and WAN interfaces, and configuring the XG310 as the client. The idea would be to set up 2 hosts in the client, first the 20.20.20.2 and then 1.1.1.1.
What we need to know is, once the XG310 establishes the VPN against the 20.20.20.2 IP, if that connection falls, will it automatically try to connect to the 1.1.1.1 IP? It wouldn't be a problem to have an up to 5 minutes delay for it but we need it to be automatic.
