Help me with static routing.

Greg Rogers

I'll try to explain this as easy as possible.

I have two internet connections with 5 static ips on each connection. I have a Cisco router (A: 10.0.1.1) and Sophos XG 135 (B: 192.168.10.1). Both routers have a public IP to each internet connection. Both routers are connected to the same switch.

I need to setup a static route between A and B.

How would I go about this in the Sophos?



I'm guessing I'd go to configure -> routing -> static routing and add a ipv4 unicast route with the dest of 10.0.1.0/24 and gateway of 192.168.10.2 with a distance of 1?

Is there anything else I need to do after that to be able to talk to devices at 10.0.1.0/24 from 192.168.10.0/24?



This thread was automatically locked due to age.
Parents
  • 0

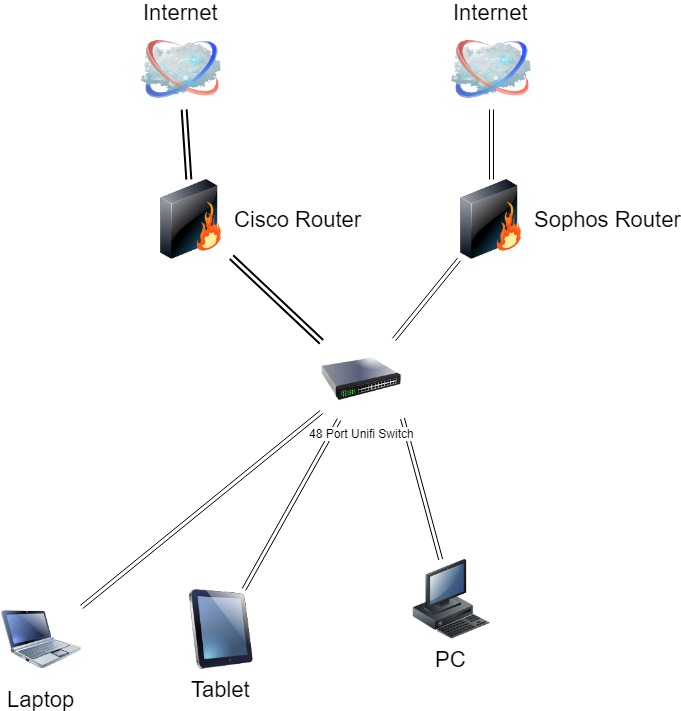

    This diagram is what I am trying to achieve. I need those computers to be able to talk to machines on the Cisco as well as the Sophos router. I want all their primary traffic to go out over the Sophos router.

    I figured setting up a static route between the sophos router and cisco router is the best way to do this.





    Right now I have two sophos XG's setup in this configuration for lab testing purposes. How would I do this with 2 XG's?

  • 0 in reply to Greg Rogers

    But: All Clients seems to be in one broadcast Domain? So what should XG / Cisco do here?

    But looks like Asynchron Routing.

    https://networkguy.de/?p=409



    Default Gateway is XG. But XG needs to send something to Cisco.
