Sophos UTM Konfiguration: VPN über RED

Markus Mahlandt

Hallo,

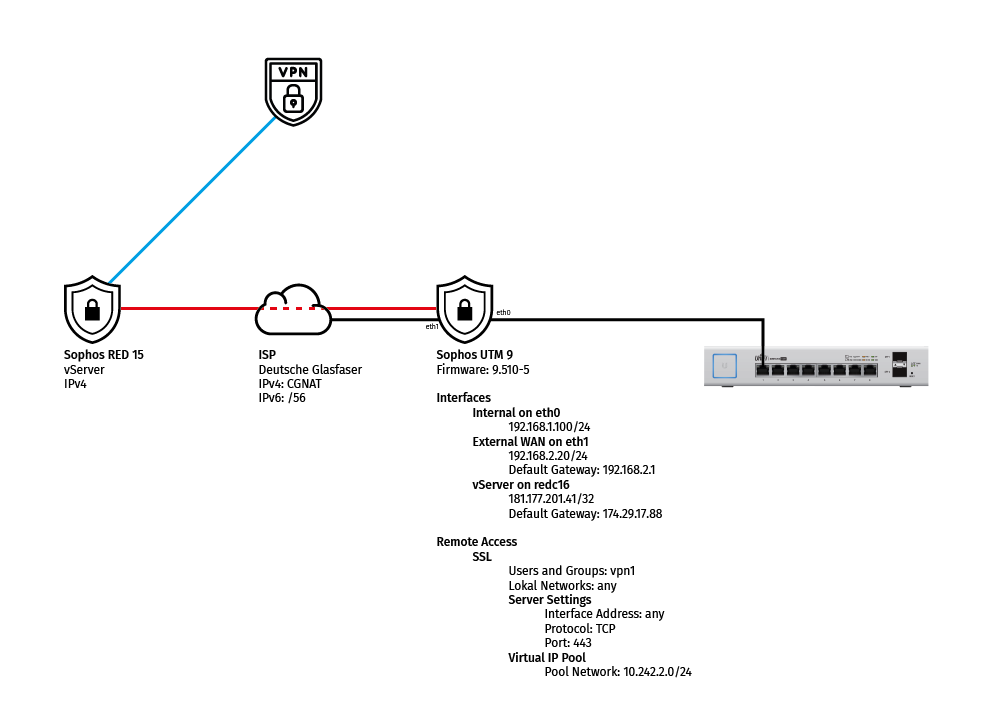

anbei eine grobe Übersicht meines Heimnetzes:





Um von außen per VPN auf mein Heimnetz zuzugreifen, habe ich wegen dem CGNAT meines ISPs einen vServer (Sophos RED 15) mit fester IP gemietet und eine Verbindung mit meiner Sophos UTM 9 hergestellt (rote Verbindung). Die Verbindung zwischen den Sophos läuft einwandfrei, ich kann mit der IP vom vServer auf meine UTM zugreifen. Ebenso funktioniert die Verbindung mittels SSL VPN auf meine UTM mit der IP vom vServer.

Was muss ich auf meine UTM konfigurieren um mit aktiver VPN-Verbindung Webseiten aufzurufen und laufende VMs per RDP im lokalen Netzwerk zu verwalten?

Ich stehe gerade etwas auf dem Schlauch.



This thread was automatically locked due to age.
Parents
  • 0

    Hallo Markus,

    Erstmal herzlich willkommen hier in der Community !

    (Sorry, my German-speaking brain isn't creating thoughts at the moment. [:(])

    I'm a bit confused by the diagram as what I think is a RED tunnel is labeled as a RED 15 appliance.  I assume that this is a RED tunnel between two devices running UTM and that no RED 15 appliance is involved.  I'm also confused about the public IPs related to the RED tunnel.

    First, the "VPN Pool (SSL)" must not be identical on the two UTMs or you will have routing problems.

    If the routing is already in place for everything else, then you just need a route in the "UTM 9" for the "VPN Pool (SSL)."

    Was that enough information to get you where you want to go?  If not, then we'll need to see pictures of the Edits of your RED interfaces, your Static Routes and the SSLVPN Profile in your vServer.

    MfG - Bob (Bitte auf Deutsch weiterhin.)

Reply
  • 0

    Hallo Markus,

    Erstmal herzlich willkommen hier in der Community !

    (Sorry, my German-speaking brain isn't creating thoughts at the moment. [:(])

    I'm a bit confused by the diagram as what I think is a RED tunnel is labeled as a RED 15 appliance.  I assume that this is a RED tunnel between two devices running UTM and that no RED 15 appliance is involved.  I'm also confused about the public IPs related to the RED tunnel.

    First, the "VPN Pool (SSL)" must not be identical on the two UTMs or you will have routing problems.

    If the routing is already in place for everything else, then you just need a route in the "UTM 9" for the "VPN Pool (SSL)."

    Was that enough information to get you where you want to go?  If not, then we'll need to see pictures of the Edits of your RED interfaces, your Static Routes and the SSLVPN Profile in your vServer.

    MfG - Bob (Bitte auf Deutsch weiterhin.)
