IPSec Site-to-Site VPN on a SonicWall Firewall

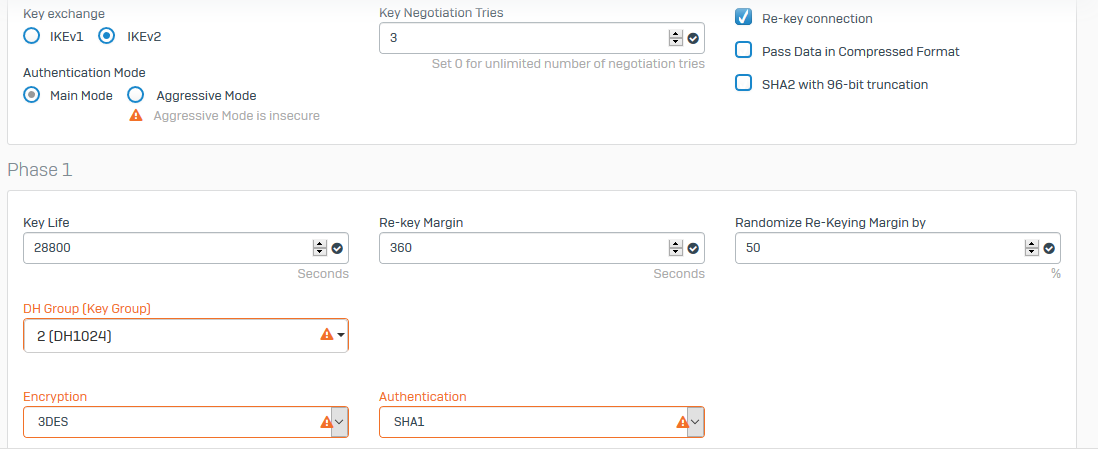

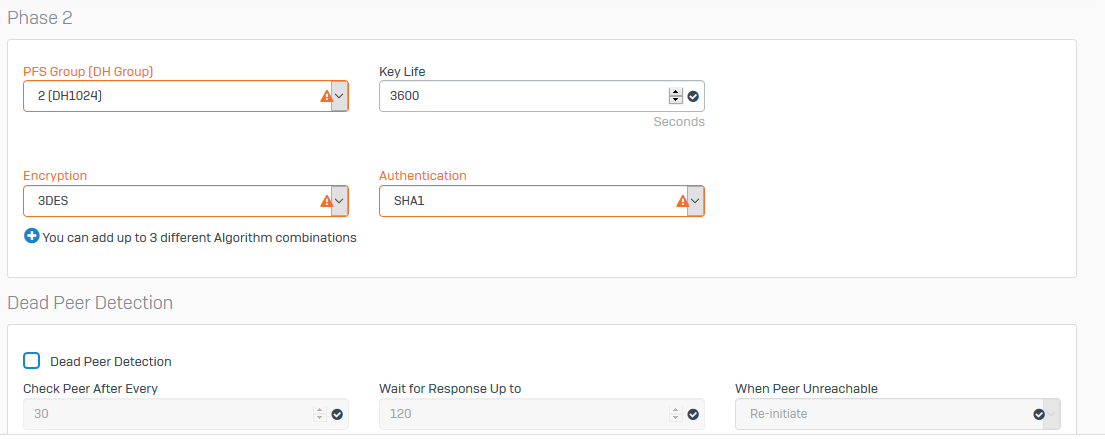

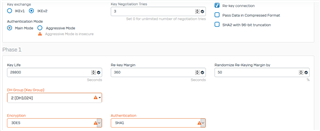

Here is a sonicwall IPsec policy I used during my migration to XG at all my sites.

Added SonicWall Side

Hi,

Thank you very much for the reply.
Additionally, you have to make some configuration to the SonicWall, because it has other options that the XG Firewall does not have.

Thank you

Please review my post, I added the SonicWall side as well. You still need to understand what traffic you want to pass, and there are firewall rules that need to be applied as well, but I believe this answers the question asked, in regards to IPSec policy.

Hi,

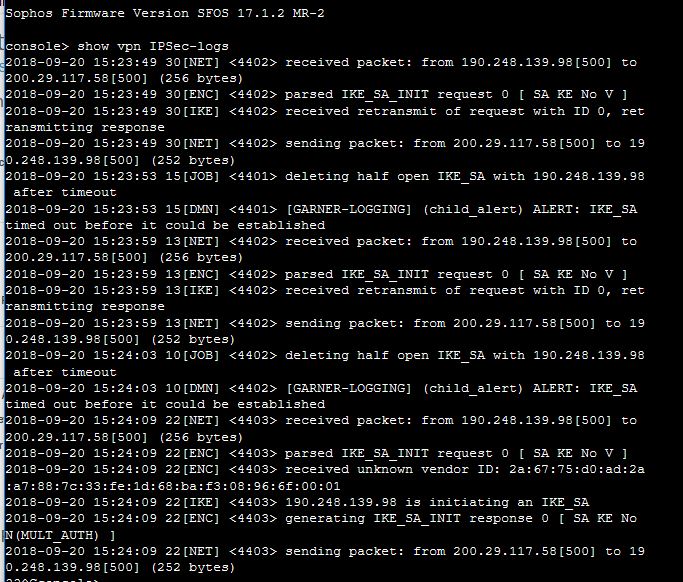

It did not work.

Some other solution.

Thanks you...

So whats not working? You do need to fill out the keys and identifications and what not, but the IPSec policy settings that work are there.

If you want to share your configuration for policy and VPN settings from both devices, then I certainly would take a look.

Hi,

It works now.

It was necessary to enable a function in the sonicwall team (Perfect Forward Secret).

Thank you.

Hi,

It works now.

It was necessary to enable a function in the sonicwall team (Perfect Forward Secret).

Thank you.
