Routing ins WAN/Internet funktioniert nicht

John_Doe123

Hallo liebe Community,

egal aus welchem Netz ich komme, die Sophos routet nicht ins WAN-Netz/Internet weiter.

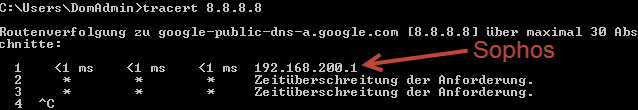

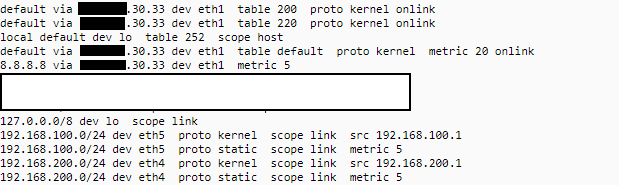

WAF und der Ping von der Sophos ins Internet klappt ohne Probleme, Default Route hat er auch das richtige Gateway.

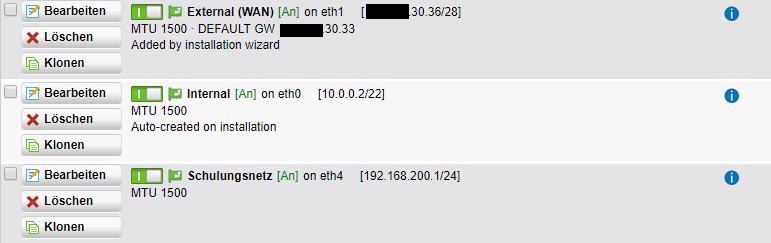

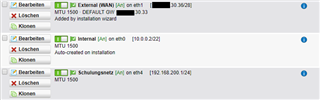

Schnittstellen:

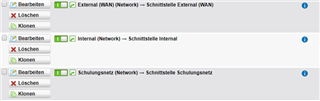

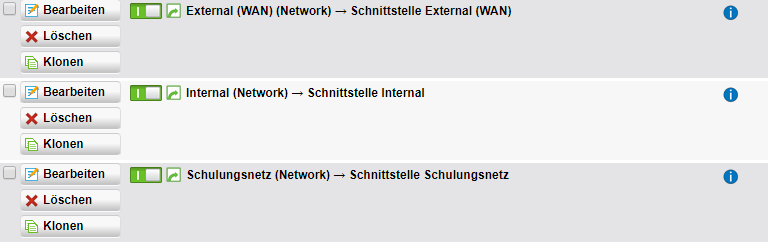

Statisches Routing:

Firewall-Regel:



NAT ist ausgeschaltet:



Ich hoffe ihr könnt mir weiterhelfen.



Viele Grüße





This thread was automatically locked due to age.
Parents
  • 0

    Hallo,

    Erstmal herzlich willkommen hier in der Community !

    (Sorry, my German-speaking brain isn't creating thoughts at the moment. [:(])

    As gsxfan said, your Static Routes are redundant to the routes created automatically by WebAdmin when you define subnets on Interfaces and you do need an active Masq rule.  #3.1 in Rulz lists some other common TCP/IP routing mistakes.

    Also, you need to be conscious of the fact that "External (WAN) (Network)" is not = "Internet IPv4" - in other words X.Y.30.32/28 is not = 0.0.0.0/0.

    Ping and Traceroute are regulated on the 'ICMP' tab of 'Firewall' - see #2 in Rulz to better understand the order in which rules  are processed.  The "Any" Service includes only TCP and UDP - none of the other IP Protocols are included.

    Don't feel badly about these beginners' mistakes with WebAdmin - I've seen Cisco CCIEs make more errors when first starting.

    MfG - Bob (Bitte auf Deutsch weiterhin.)

  • 0 in reply to BAlfson

    BAlfson said:

    ....

    I've seen Cisco CCIEs make more errors when first starting.

    That makes me sleep better. :)



    Wie schauts, John Doe - läufts jetzt?
