RDP from WAN to LAN doesn't work - [SOLVED]

Hello,

I have two 'WAN to LAN' rules. The one is for HTTP and the other is for FTP. Both of them works! But when I try to set up a rule for RDP it won't work. Everything is the same as the rules that work, except for the service/port of course.

When I make an RDP request from WAN absolutely nothing is logged in the Firewall. It appears that traffic doesn't even reach the Firewall. I use the same DNS name when contacting via RDP as I do for both HTTP and FTP (that works).

Notice: RDP worked fine with UTM. I haven't changed any settings in my LAN. The server still accepts RDP and there is no local firewall issue. It simply seems to be a bug in XG.

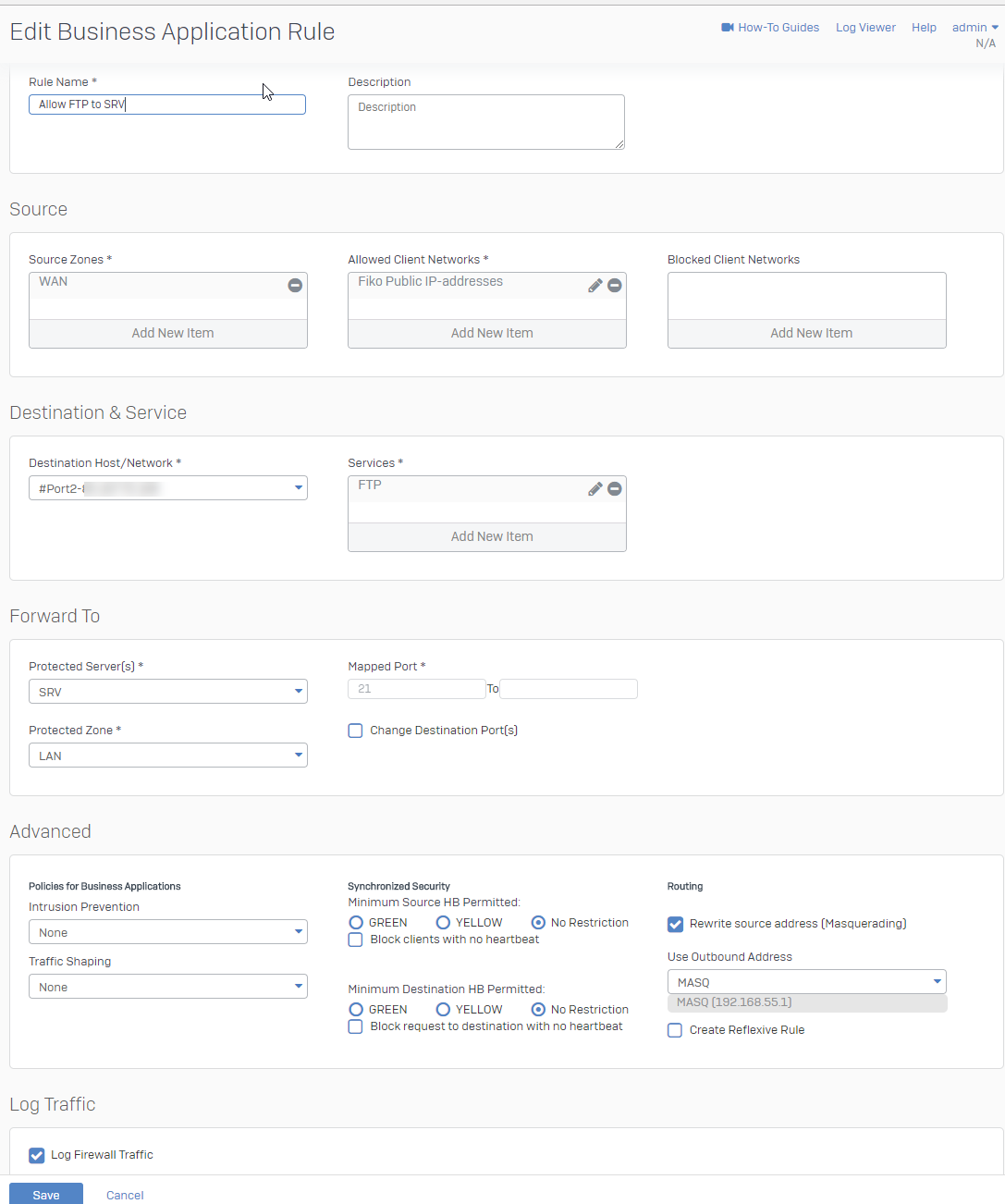

This is the rule that works:

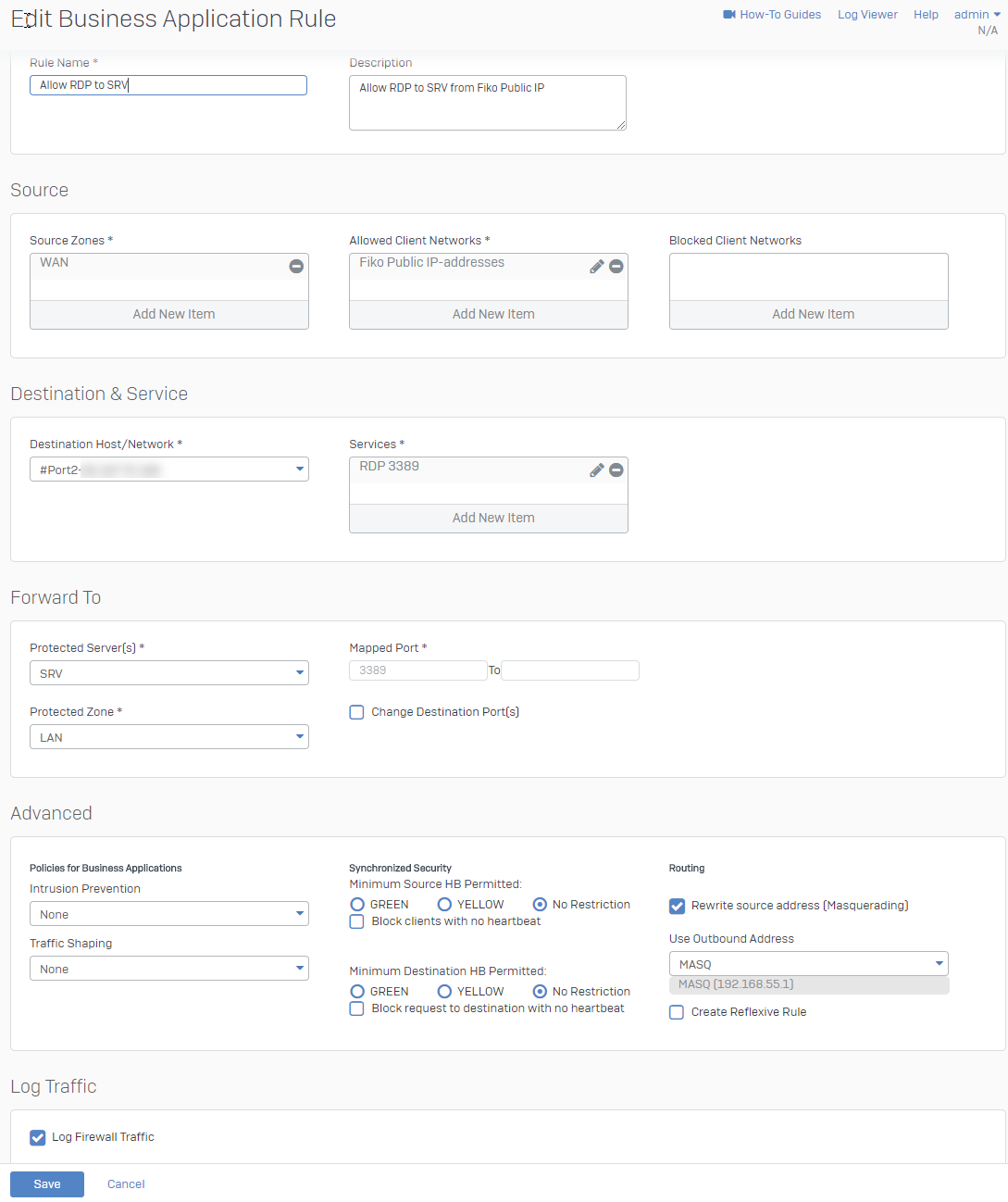

This doesn't work. NOTHING in the firewall log

This thread was automatically locked due to age.

0 Sven David Hildebrandt over 7 years ago

Hi guys,

I've been trying to solve this for quite a while but now I solved the problem myself while posting here. Both the HTTP and FTP services were already predefined in the firewall. The RDP service I created myself. The problem was that I had set both the source and destination port as 3389, my bad. When I set the source port to 1:65535 it worked!

Thanks
Cancel
Vote Up 0 Vote Down

Cancel
0 Guilherme Figueiredo over 7 years ago in reply to Sven David Hildebrandt

Hi Sven,

Glad you Doubt was solved.

but i have a 2 tips for you:

1- Never put a port 3389 the front of the internet.

2- When you postin a print Please hides your IP WAN.
Cancel
Vote Up 0 Vote Down

Cancel
0 Sven David Hildebrandt over 7 years ago in reply to Guilherme Figueiredo

Thanks Guilherme!

Good advice. I forgot to hide the IP, but it's not permanent/fixed so it changes once in a while. I use a Dynamic DNS service.

When it comes to the RDP I set Any in the 'Allowed Client Networks' when making the screenshots, but in reality it's just the public IP of my work network that is allowed via RDP, not Any.

Thanks again.
