Splunk apps for Sophos

Sophos now offers and supports two Splunk data add-on apps, as well as a dashboard app for visualizing the data across products.

*Note: These installers are provided to our partners and customers "as is" for improving their business processes and conducting threat hunting.

By using any of the below software, you agree to the Sophos API & Plugins Terms of Use. You also acknowledge that Sophos processes personal data in accordance with the Sophos Privacy Policy.

Sophos Firewall Ingestor via syslog forward
Sophos Central Data Ingestor
- Ingests data across
  - Central Endpoints API
  - Central Alerts API
  - Central SIEM Events API
Sophos Dashboard App to select data sources and provide insightful dashboards across Central Data, Firewall data, or both if using both Add-ons.
- Download from Splunkbase.

Note: You must have at least one TA ingestor Add-on as a prerequisite to using the dashboard application.

Dashboard Overview

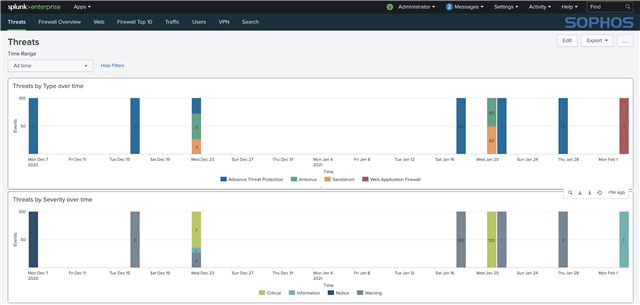

Threat Dashboard - Use this dashboard to understand threat trends and view threats by type, severity and Source IP over time

Correlate data between Central and (XG) Firewall if using both TA Add-ons.

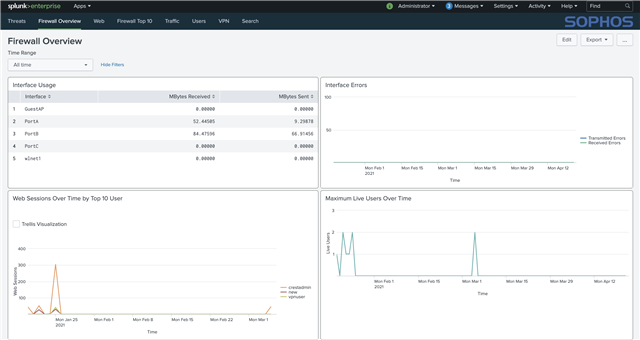

Firewall Overview - Quickly determine usage trends of your firewall device with widgets such as Interface Usage and Web Sessions over time.

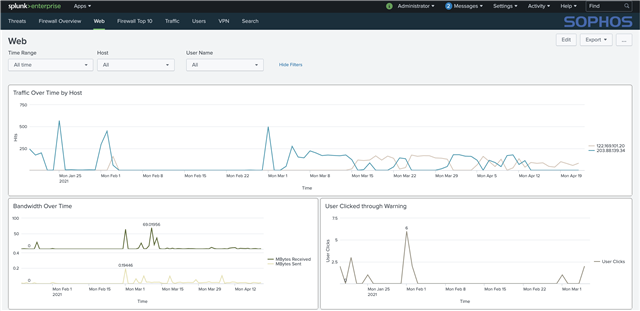

Web - Provides a snapshot view of web trends and usage over time

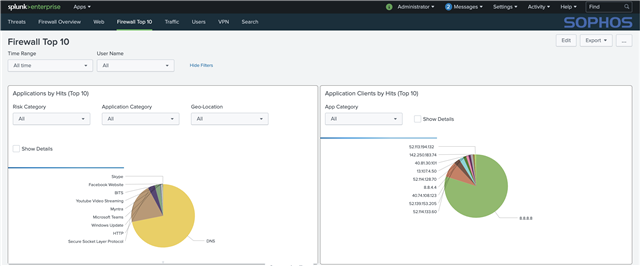

Firewall Top 10 - See top trends across application and traffic usage

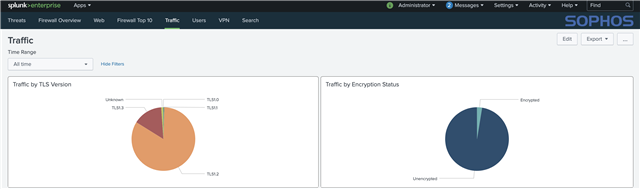

Traffic - Provides a deeper dive into traffic analysis and visualization

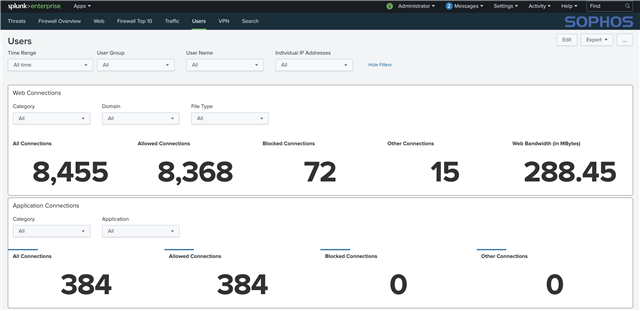

Users - View and filter user interactions by time, group, name and IP address

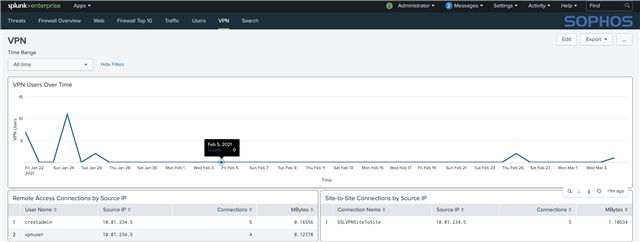

VPN - View VPN trends such as Usage Over Time, Connection Types, and Web Categories accessed via VPN

Installation & Configuration

The dashboard App may be downloaded from Splunkbase.

There are configurations on setup to allow you to select dashboard feed from Sophos Central for Endpoint and Alert data, or our Next-Gen firewalls or both.

Note: Once the application is installed you must tell the application what data indexes it should be using as the source from where to display the data.
