Sophos XG Azure Site-to-Site to Point-to-Site routing issue

Hi everyone!

I'm setting up a lab for a customer PoC and I'm having trouble routing from On-Prem connected by IPSEC Site 2 Site Azure VPN to users dialled in via Azure IKEv2 Point 2 Site and vice versa.. Please see below:

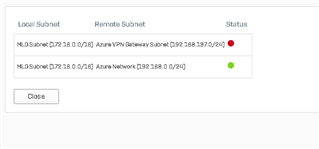

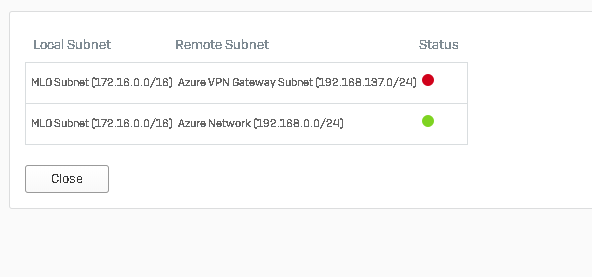

The on-prem server can ping and connect to the azure vm and the dialed in user can also ping the Azure server but there is no routing between.. I've tried setting up BGP as often suggested in article and it seems that BGP is being blocked:

Both VPNs terminate in the same gateway subnet which MS support fully..

XG Info:

Version: SFOS 17.0.8 MR-8

AP Firmware	11.0.001	-	12:14:24, Dec 28 2017
ATP	1.0.0196	-	12:09:45, Jun 05 2018
Avira AV	1.0.23261	-	12:10:53, Jun 07 2018
Authentication Clients	1.0.0011	-	14:53:09, Mar 17 2018
IPS and Application signatures	3.14.87	-	14:11:14, Jun 07 2018
RED Firmware	2.0.014	-	05:54:14, Mar 10 2018
Sophos AV	1.0.12676	-	06:10:46, Jun 07 2018
SSLVPN Clients	1.0.007	-	10:17:47, Aug 11 2017
WAF	1.0.0006	-	10:12:04, Aug 11 2017

Any ideas?

Thanks!

Darren
